System onlineTimepix3 — Position, Energy, and Time-Sensitive Detection

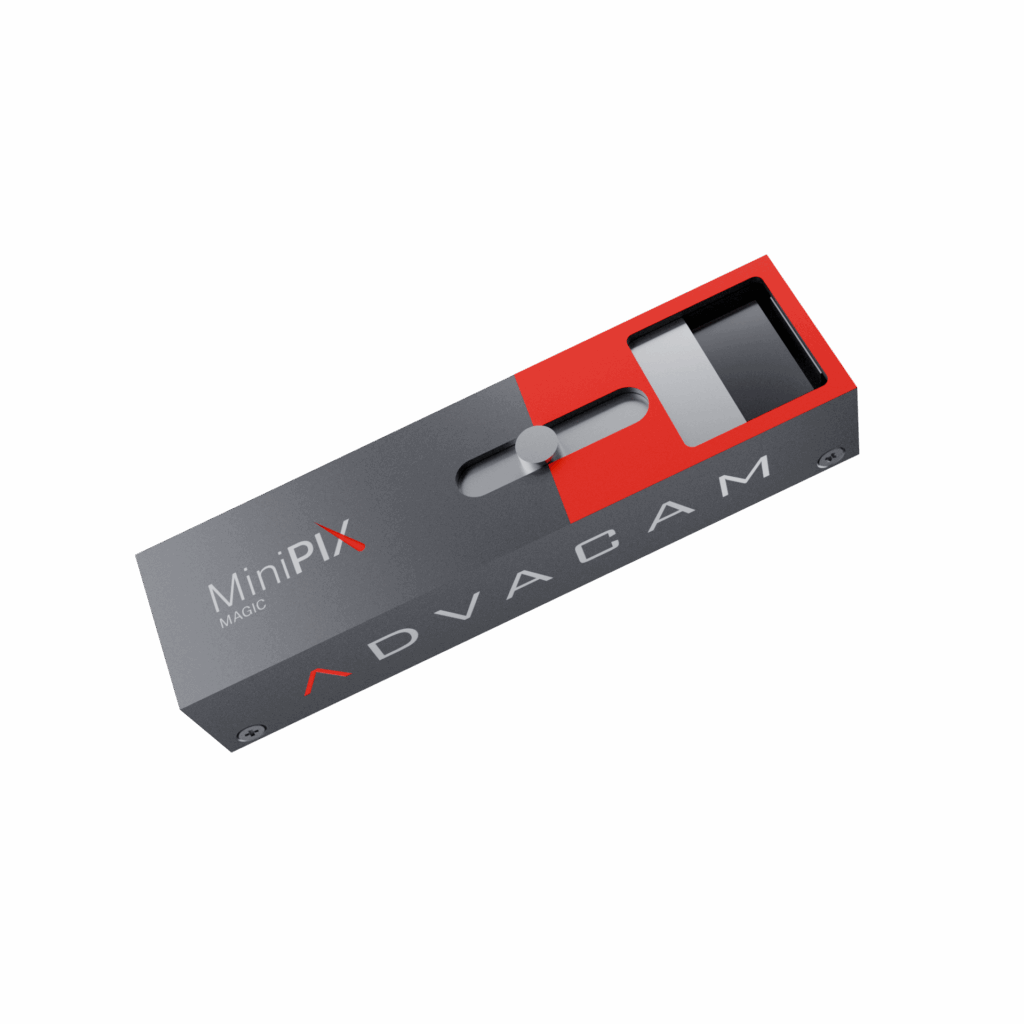

MiniPIX MAGIC — Miniaturized Photon-Counting Camera
M-01
10
Key specifications
M-02
5
Applications
M-03
6
Performance features
Key Features
What Sets This Product Apart
01Data-driven readout - every particle with position, energy, and time
02Zero dark current - true single-photon counting
031.6 ns timing resolution for particle tracking
04Energy-sensitive imaging via Time-over-Threshold
05Ultra-compact 40 g form factor
06Multi-platform: PIXet Pro for Windows, Mac, Linux
Specifications
Technical Details
- 01Sensor: Timepix3, 256x256 pixels, 55um pitch
- 02Sensitive Area: 14x14 mm
- 03Energy Resolution: 1.2-9.9 keV FWHM
- 04Time Resolution: 1.6 ns
- 05Max Hit Rate: 2.35M pixels/s
- 06Frame Rate: 16 fps
- 07Min Energy: 3 keV (Si), 5 keV (CdTe)
- 08Connectivity: USB Micro-B
- 09Weight: 40 g
- 10Sensors: Si 100/300/500um, CdTe 1000um
Applications
Where It Excels
- 01Non-destructive testing and material analysis
- 02X-ray and gamma-ray imaging
- 03Particle tracking and radiation monitoring
- 04Education and research physics
- 05Space radiation detection
