System onlineMedipix3 - Color Radiography with Charge Summing Mode

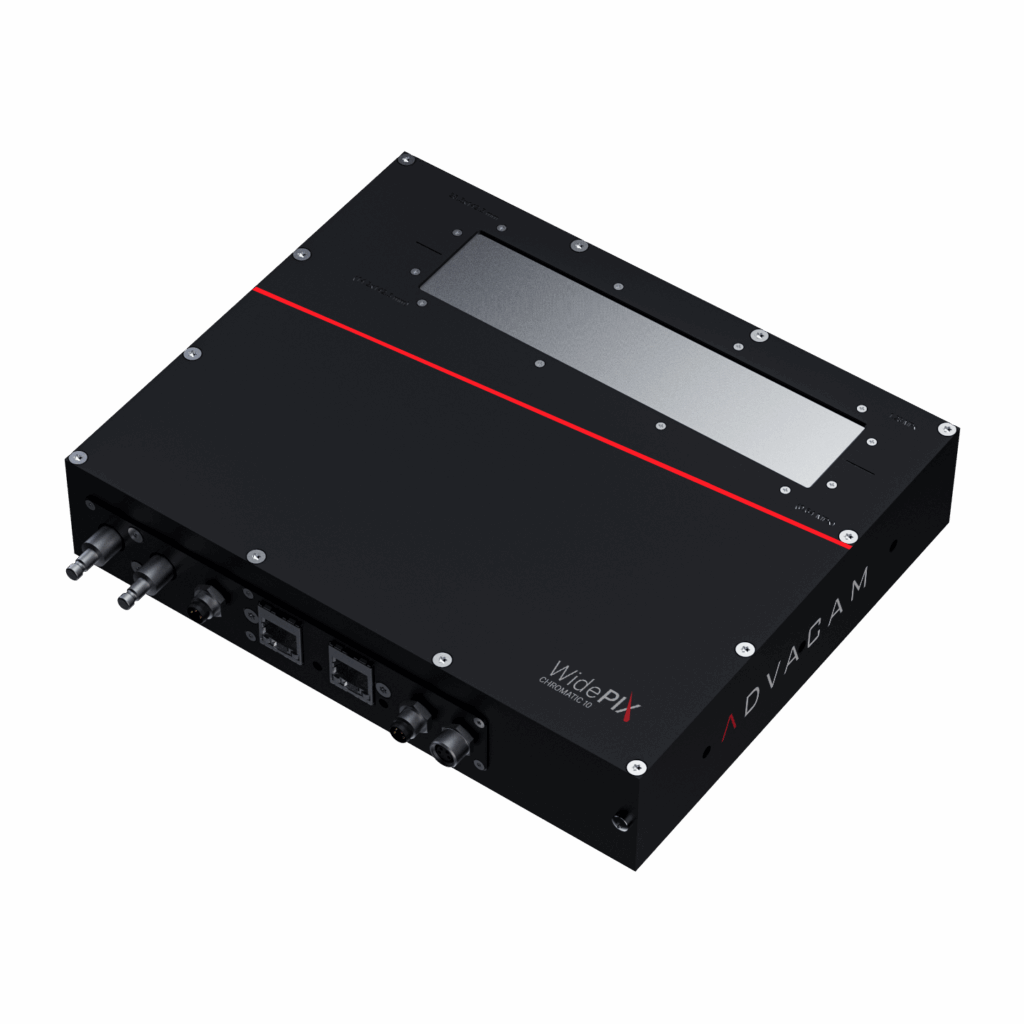

WidePIX CHROMATIC - Multi-Chip Spectral X-Ray Imager
M-01
10
Key specifications
M-02
5
Applications
M-03
6
Performance features
Key Features
What Sets This Product Apart
01Spectral color radiography - material discrimination via energy thresholds
02Charge Summing Mode mitigates charge sharing
03Hardware TDI for moving-sample imaging
04Tiled architecture from 70x14 mm to 70x70 mm
05Single-cable Power over Ethernet
06Water cooling for continuous operation
Specifications
Technical Details
- 01Sensor: Medipix3 (tiled array)
- 02Pixel Pitch: 55um
- 03Resolution: 9 lp/mm
- 04Frame Rate: up to 170 fps
- 05Thresholds per Pixel: 1 or 2
- 06Counter Depth: 12 or 24 bits
- 07TDI: hardware-based
- 08Min Energy: 5 keV (Si), 8 keV (CdTe)
- 09Connectivity: Ethernet / PoE
- 10Weight: 1,700-4,910 g
Applications
Where It Excels
- 01Industrial CT scanning and NDT
- 02Material-sensitive color radiography
- 03Conveyor-belt inspection and security scanning
- 04Medical imaging and small-animal CT
- 05Robotic inspection systems
